![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh13wcACtxWf4cLQTDrM4bem6WgAywnNkUspkNg2DKW9PZlOsqUfHogUXmI8h84BSi93C3Fx4Uc8rKn_yjKltC2fhUbczEq0g4MzaqCaZ_cgPo8FxwAsENK_39tv6hPwHvxN3F-9YN7OvU/s550/DeAnza_MLC_PR_Images4.JPG) |
The two-story De Anza College Media and Learning Centre, in Cupertino, California, designed by Ratcliff. Photo: David Wakely |
Ratcliff, an architecture firm in Emeryville, California, designed the recently completed Media and Learning Center at De Anza College, in Cupertino, California. The 14-classroom, 67,000-square-foot (6,200-square-meter) project opened for classes in September, accommodating classes in anthropology and general education.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg4wi-Us-L172xOlKoMSXZ2nvHgyibj66maWA0SkyiPbI4O74A4fiXs9MzlZ1zBESvUdQ7fl476T7S0FRW1s-R4Ww0EG_RbTn6qrpKJOSegjTSxDgxkJGOwEbdIxrXNM2MqOhqOZhYb-HI/s550/DeAnza_MLC_PR_Images3.JPG) |
The 80-foot-long (24-meter-long) atrium of the Media and Learning Center. Photo: David Wakely |
The building is expected to earn a LEED Platinum certification and sports a number of sustainable features, including a 6,000-square-foot (560-square-meter) photovoltaic array mounted adjacent to the fritted-glass skylight over a central atrium space. The atrium's clerestory glazing, along with considerable glazing along the building's facades, helps to provide daylight access to many of the spaces.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjNQbgirG9I04tToDr7uytv7Ia1NJ1WvIhQ4e3vD_Vxkw8ouZYQu_9e4uSxDXadLMWzxsd0Xrn1qFew4wvPAQwVAJ_Y2WPx0imsB14BRK7S6rw5PnbsN18v_S43QQXhKQ-DpnW5HkgnrYw/s550/DeAnza_MLC_PR_Images-p12.jpg) |
Section diagram showing air circulation patterns. Image: Ratcliff |
The atrium also plays a central role as the exhaust point of the center's passive-downdraft ventilation system. Cooling towers located along either side of the building serve as the system's air supply. And rooftop vacuum-tube thermal solar array also provides heat for the HVAC system.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj9KCkv5mWG76GBmuRDz3NT5eTZ4hqbIX8HOs2sIanfb5xzRblauFxt4kFtWWiSGOJ5PJKJQDIzAkXwit7epMwOdmkq1pXjIN73gwMC3LHmNx_wtRNdjqGmqgfXUsv-NLd49PHYaivuZCY/s1000/DeAnza_MLC_PR_Images7.JPG) |
The vacuum-sealed thermal solar array. Photo: David Wakely |
The grounds are planted with drought‐resistant vegetation and shade trees, and include storm‐water runnels that conserve irrigation water.
The building's steel structure is a buckling restrained brace-frame system that absorbs seismic energy by allowing a building to flex, reducing the possibility of damage at key structural connections during earthquakes.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjx9vznbfT6nOqtNLqEvGHTVqpcYacT043mqDoxJQXm1JKgbrzetKk5OGc5dswDSsvayLpPcFwE1eKcL9Uj8T-enxxcmSABfvEHbzYPMxAF52iZ_4Kfcp7xkxLpA7XfPN27Og_vIVvPIAM/s640/DeAnza_MLC_PR_Images1.JPG) |

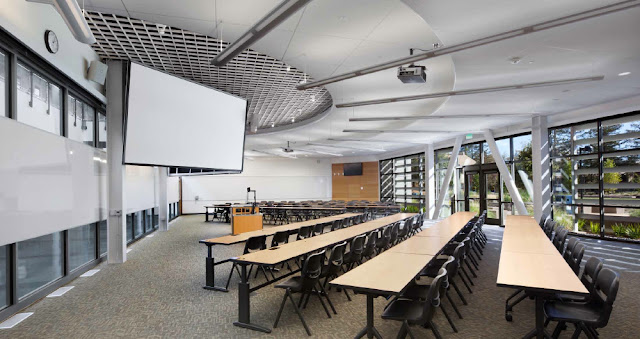

A radially configured classroom of the Media and Learning Center. Photo: David Wakely |
The firm estimates that the Media and Learning Center will use as much as 71% less energy than the regional average for higher-education buildings. WSP Flack + Kurtz is the engineer of record for the $37-million project.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiBXi379XPvfl3TdGxIdRFfjkVlcVUGk19cfEjYv95OudwOZECCcnbxuQToPn3P5Pc6OoEUTlvOAoQzjC8c0M1wAI-MAOG1XS_fJC0Qfm2I79v8-fP8ILRbunxOCIQSGV_bLMpmuHkQb8s/s550/DeAnza_MLC_PR_Images6.JPG) |
Smaller skylights can be found around the building. Photo: David Wakely |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi5OSSqpRnM7YKIfmit7vIeKmLOIZQCwmSvJxpd88L_tpL893M3KUJvYLYXm3m9L0wMb-AgA77FdBmTG7qtBEL7bJBIUCE_kw_FcSHB-4lieljjk4oF2prt0ArBDPLu-Z3XA-2xx1_mWIk/s550/DeAnza_MLC_PR_Images8.JPG) |
The building's photovoltaic array. Photo: David Wakely |
